Controlling Display Brightness on the Synaptics DRM Driver
modetest application to control display brightness on DRM CRTCs
using the Synaptics display driver.
Features
Controls overall CRTC brightness from userspace
Controls per-channel brightness (
R brightness,G brightness,B brightness)Works directly with DRM CRTC properties
Supports mode setup and brightness update in a single command
Supports dynamic brightness update after display initialization
Brightness Properties
The Synaptics DRM driver exposes the following brightness-related properties on the CRTC:
brightnessR brightnessG brightnessB brightness
Brightness Range
Each brightness property accepts a signed value in the range -128 to 127:
Value |
Meaning |
|---|---|
127 |
Maximum brightness |
0 |
Default / neutral level |
-128 |
Minimum brightness / full dark |
Note
Brightness change is applicable only for SL1620 and SL26XX series platforms.
Display Configuration Used
The examples on this page assume the following display setup. Replace
the connector and CRTC IDs with the values reported by modetest on
your board.
Parameter |
Value |
|---|---|
Driver |
synaptics |
Connector |
33 |
CRTC |
36 |
Mode |
800x480@59.72 |
Example Commands
Default brightness values can be viewed using the modetest command:
modetest -M synaptics -p
Sample output (CRTC section):
CRTCs:
id fb pos size
36 54 (0,0) (800x480)
#0 800x480 59.72 800 1010 1012 1058 480 502 504 527 33300 flags: ; type: preferred, driver
props:
24 VRR_ENABLED:
flags: range
values: 0 1
value: 0
28 GAMMA_LUT:
flags: blob
blobs:
value:
29 GAMMA_LUT_SIZE:
flags: immutable range
values: 0 4294967295
value: 256
37 R brightness:
flags: signed range
values: -128 127
value: -128
38 G brightness:
flags: signed range
values: -128 127
value: -128
39 B brightness:
flags: signed range
values: -128 127
value: 127
40 brightness:
flags: signed range
values: -128 127
value: -128
Set full brightness:
modetest -M synaptics -s 33@36:#0 -w 36:"brightness":127
Set full dark:
modetest -M synaptics -s 33@36:#0 -w 36:"brightness":-128
Set the blue channel to maximum:
modetest -M synaptics -s 33@36:#0 -w 36:"B brightness":127
Alternate Method
Brightness can also be changed after mode initialization.
Open two terminals on the board.
Terminal 1 – Set Display Mode:
modetest -M synaptics -s 33@36:#0 -d
Terminal 2 – Update Brightness Dynamically:
modetest -M synaptics -w 36:"B brightness":0
modetest -M synaptics -w 36:"B brightness":127
Negative Cases
Values outside the allowed range are rejected by the kernel:
modetest -M synaptics -w 36:"B brightness":128
failed to set CRTC 36 property
modetest -M synaptics -w 36:"B brightness":-129
failed to set CRTC 36 property
Full modetest Output (Reference)
The following is the complete output of modetest -M synaptics on a
dual-display SL1620 setup, showing both CRTCs (DPI-1 and DPI-2) and
their associated brightness properties:
root@sl1620:~# modetest -M synaptics
Encoders:
id crtc type possible crtcs possible clones
32 36 DPI 0x00000001 0x00000001
41 45 DSI 0x00000002 0x00000002
Connectors:
id encoder status name size (mm) modes encoders
33 32 connected DPI-1 0x0 1 32
modes:
index name refresh (Hz) hdisp hss hse htot vdisp vss vse vtot
#0 800x480 59.72 800 1010 1012 1058 480 502 504 527 33300 flags: ; type: preferred, driver
props:
1 EDID:
flags: immutable blob
blobs:
value:
2 DPMS:
flags: enum
enums: On=0 Standby=1 Suspend=2 Off=3
value: 0
5 link-status:
flags: enum
enums: Good=0 Bad=1
value: 0
6 non-desktop:
flags: immutable range
values: 0 1
value: 0
4 TILE:
flags: immutable blob
blobs:
value:
42 41 connected DPI-2 0x0 1 41
modes:
index name refresh (Hz) hdisp hss hse htot vdisp vss vse vtot
#0 1920x1080 60.00 1920 2008 2052 2200 1080 1084 1089 1125 148500 flags: ; type: preferred, driver
props:
1 EDID:
flags: immutable blob
blobs:
value:
2 DPMS:
flags: enum
enums: On=0 Standby=1 Suspend=2 Off=3
value: 0
5 link-status:
flags: enum
enums: Good=0 Bad=1
value: 0
6 non-desktop:
flags: immutable range
values: 0 1
value: 0
4 TILE:
flags: immutable blob
blobs:
value:
CRTCs:
id fb pos size
36 54 (0,0) (800x480)
#0 800x480 59.72 800 1010 1012 1058 480 502 504 527 33300 flags: ; type: preferred, driver
props:
24 VRR_ENABLED:
flags: range
values: 0 1
value: 0
28 GAMMA_LUT:
flags: blob
blobs:
value:
29 GAMMA_LUT_SIZE:
flags: immutable range
values: 0 4294967295
value: 256
37 R brightness:
flags: signed range
values: -128 127
value: -128
38 G brightness:
flags: signed range
values: -128 127
value: -128
39 B brightness:
flags: signed range
values: -128 127
value: 127
40 brightness:
flags: signed range
values: -128 127
value: -128
45 54 (0,0) (1920x1080)
#0 1920x1080 60.00 1920 2008 2052 2200 1080 1084 1089 1125 148500 flags: ; type: preferred, driver
props:
24 VRR_ENABLED:
flags: range
values: 0 1
value: 0
28 GAMMA_LUT:
flags: blob
blobs:
value:
29 GAMMA_LUT_SIZE:
flags: immutable range
values: 0 4294967295
value: 256
46 R brightness:
flags: signed range
values: -128 127
value: 0
47 G brightness:
flags: signed range
values: -128 127
value: 0
48 B brightness:
flags: signed range
values: -128 127
value: 0
49 brightness:
flags: signed range
values: -128 127
value: 0
Planes:
id crtc fb CRTC x,y x,y gamma size possible crtcs
34 36 54 0,0 0,0 0 0x00000001
formats: XR24 AR24 XB24 AB24 RG16 BG16 BG24 RG24
props:
8 type:
flags: immutable enum
enums: Overlay=0 Primary=1 Cursor=2
value: 1
30 IN_FORMATS:
flags: immutable blob
blobs:
value:
01000000000000000800000018000000
01000000380000005852323441523234
58423234414232345247313642473136
4247323452473234ff00000000000000
00000000000000000000000000000000
in_formats blob decoded:
XR24: LINEAR(0x0)
AR24: LINEAR(0x0)
XB24: LINEAR(0x0)
AB24: LINEAR(0x0)
RG16: LINEAR(0x0)
BG16: LINEAR(0x0)
BG24: LINEAR(0x0)
RG24: LINEAR(0x0)
43 45 54 0,0 0,0 0 0x00000002
formats: XR24 AR24 XB24 AB24 RG16 BG16 BG24 RG24
props:
8 type:
flags: immutable enum
enums: Overlay=0 Primary=1 Cursor=2
value: 1
30 IN_FORMATS:
flags: immutable blob
blobs:
value:
01000000000000000800000018000000
01000000380000005852323441523234
58423234414232345247313642473136
4247323452473234ff00000000000000
00000000000000000000000000000000
in_formats blob decoded:
XR24: LINEAR(0x0)
AR24: LINEAR(0x0)
XB24: LINEAR(0x0)
AB24: LINEAR(0x0)
RG16: LINEAR(0x0)
BG16: LINEAR(0x0)
BG24: LINEAR(0x0)
RG24: LINEAR(0x0)
Frame buffers:
id size pitch
Observed Behavior
Command |
Result |
|---|---|
|

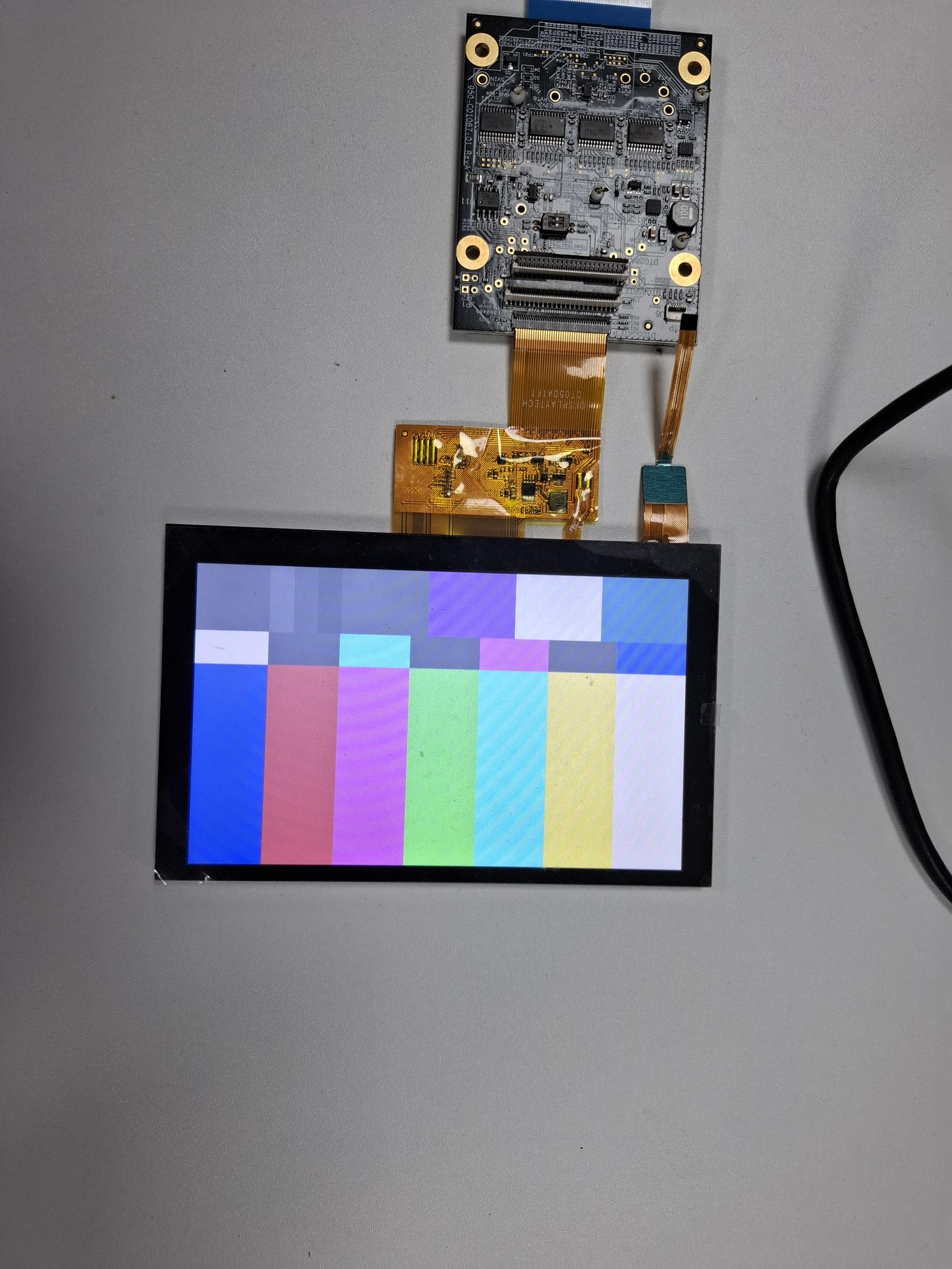

Full bright |
|

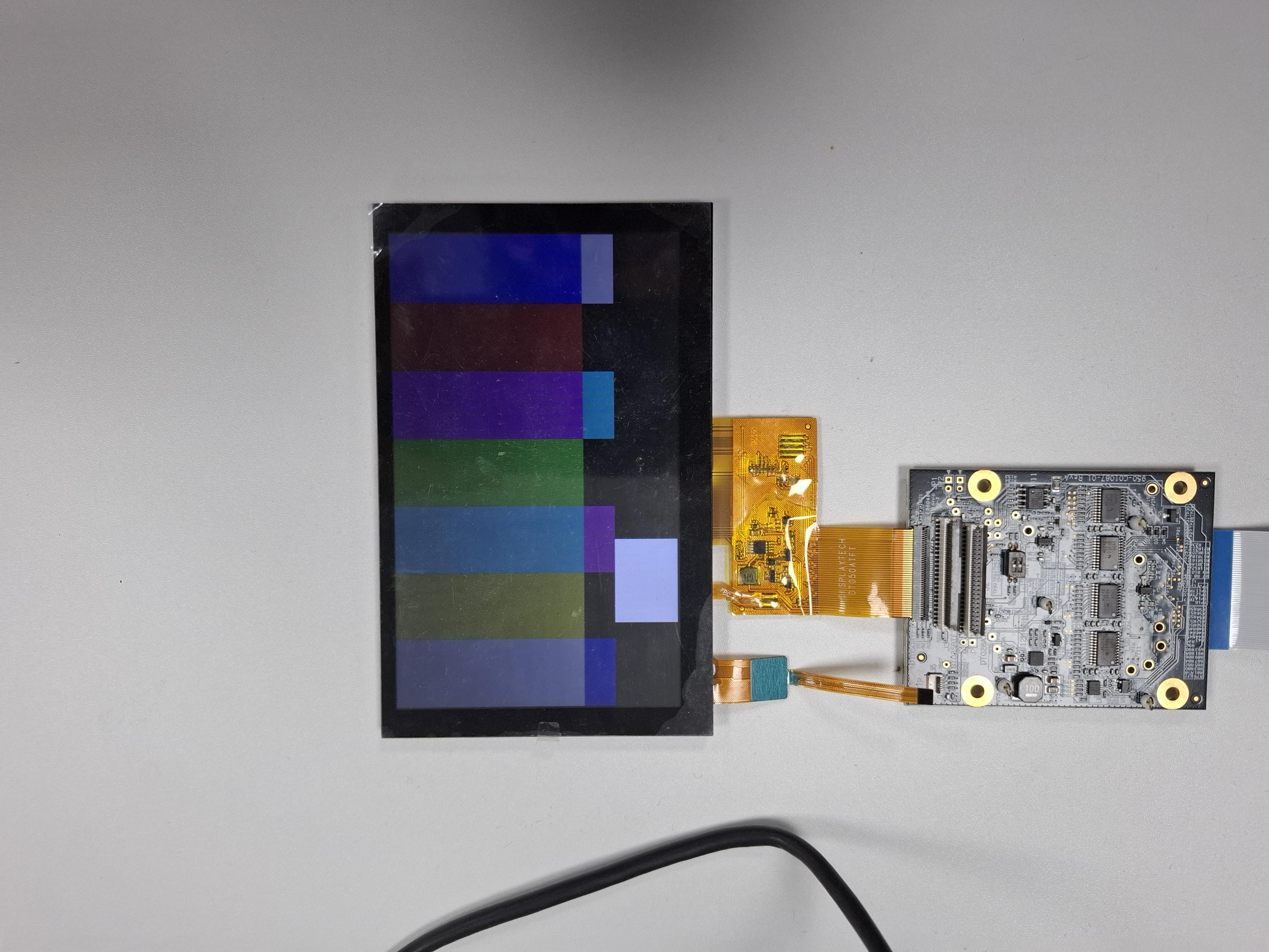

Full dark |
|

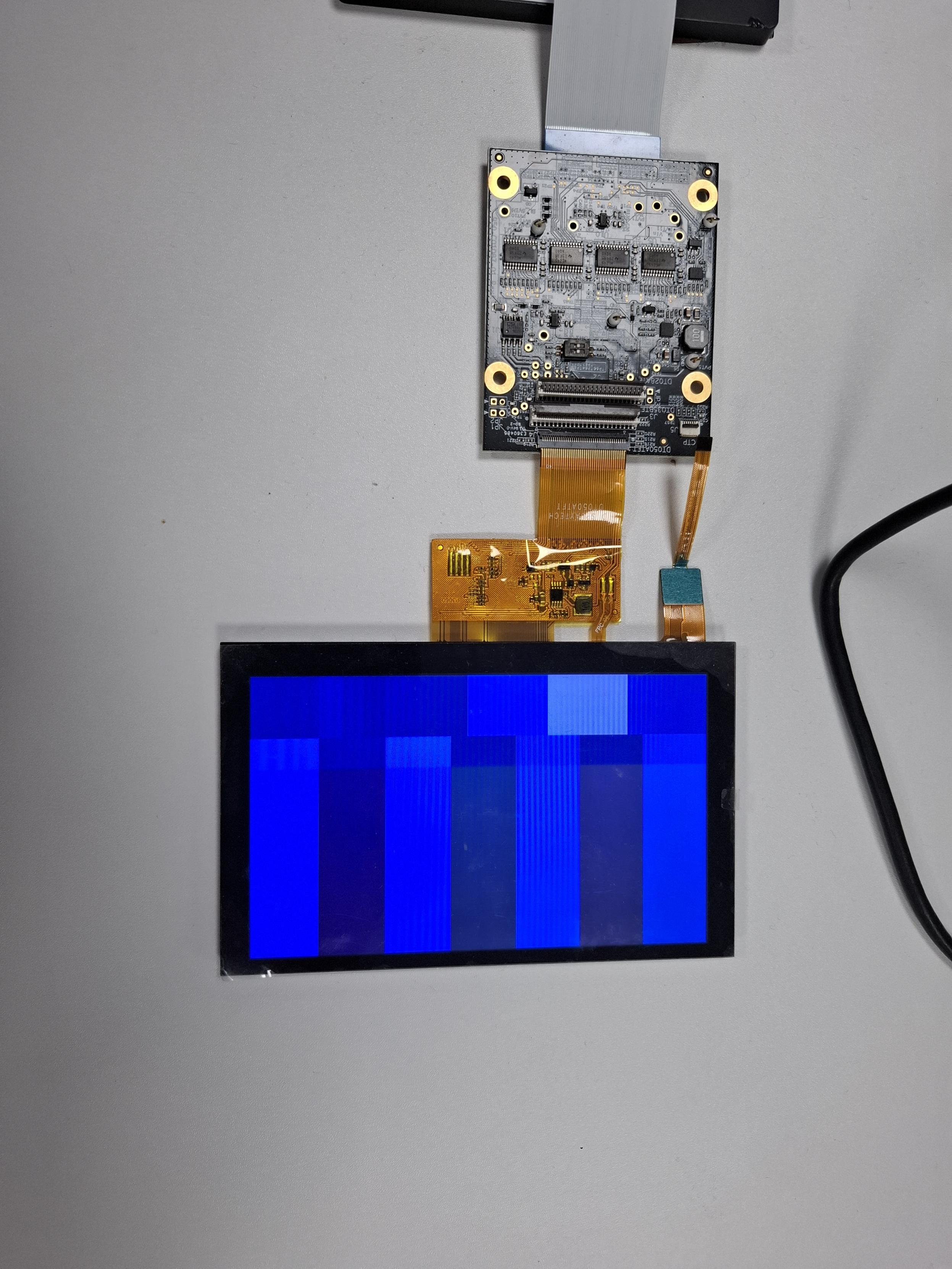

Fully bright blue |
Property write (Terminal 2) |
Brightness updates dynamically while display is enabled |
Example Output
The following property writes were exercised on the reference setup above:
-w 36:"B brightness":127

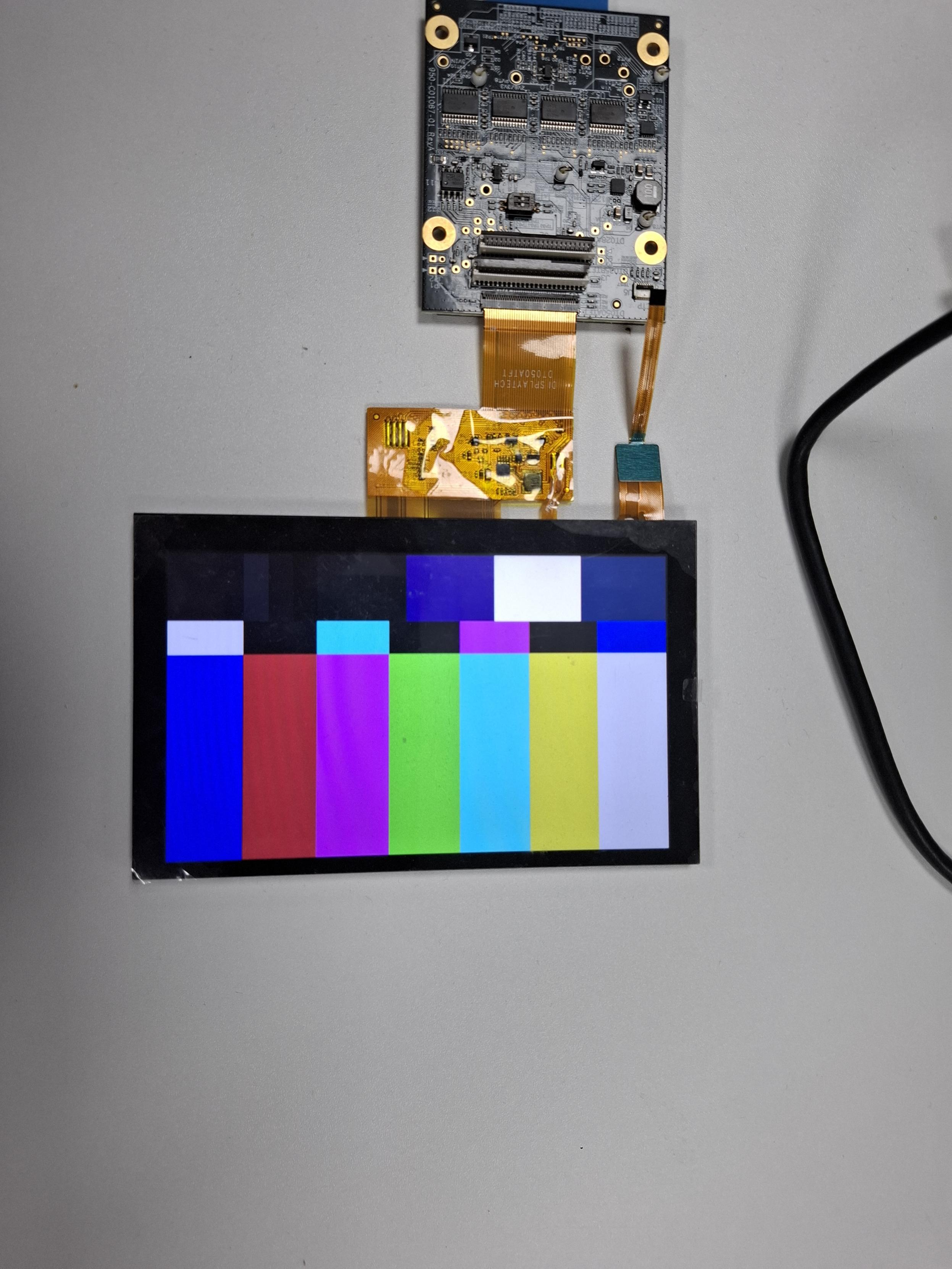

-w 36:"brightness":0
-w 36:"brightness":127
-w 36:"brightness":-128
