SL261x Authenticated Debug Access Control User Guide

This guide describes how to acquire an SL261x ADAC challenge through SDC-600, generate the 16-byte permission table and signed debug token with adac_token_tool.py, authenticate the selected debug ports, and close the session.

1 Scope and Requirements

The procedure in this document applies to SL261x. Download OpenOCD and prepare the SL261x SDC-600 files as described in the requirements below.

Important

A requested debug port can be enabled only when its OTP JTAG_Acc_Ctrl value is programmed to 2'b01.

Requirements

Item	Requirement
Debug probe	J-Link. Install the driver required by the selected probe.
OpenOCD	Download and extract the OpenOCD package for your platform from the xPack OpenOCD releases page. Copy the following files from the Factory repository at factory/scripts/klamath/sdc600/adac/OpenOCD into the root directory of the extracted OpenOCD package: Klamath_Jlink.bat Klamath_Jlink.cfg sdc600.tcl telnet_localhost_4444.bat
Terminal	Tera Term, for connecting to localhost:4444. Download it from the Tera Term releases page.
Token tool	adac_token_tool.py and the bin and keys directories listed below. Tools can be found in the: Factory repository at factory/scripts/klamath/sdc600/adac/adac_token_tool.
OpenSSL	Required when the customer generates a new K1_C_ADAC EC P-521 key pair.
Python	Run the tool with python3 from the token tool root directory.

2 Prepare ADAC Keys and the Token Tool

2.1 Generate the Customer K1 C ADAC Key Pair

The customer may generate their own K1_C_ADAC private and public key pair. Run the following commands from the keys directory:

openssl ecparam -genkey -name secp521r1 -out K1_C_ADAC.EC521.priv.pem
openssl ec -in K1_C_ADAC.EC521.priv.pem -pubout > K1_C_ADAC.EC521.pub.pem

These commands create a matching secp521r1 private/public key pair. Keep K1_C_ADAC.EC521.priv.pem confidential and do not combine it with a public key generated from a different private key.

2.2 MP Flow Key and Identity Requirements

Important

K0_OEM.priv.pem must be the same K0 OEM private key used by the customer’s MP flow. Do not generate a replacement K0 key for this token build.

MP flow inputs

Input	Required Source or Value
K1_C_ADAC.EC521.priv.pem	Customer-generated K1_C_ADAC private key. Used to sign the ADAC challenge and permission table.
K1_C_ADAC.EC521.pub.pem	Public key generated from the matching K1_C_ADAC private key. Used as the genx_img key payload.
K0_OEM.priv.pem	The existing K0 OEM private key used in the MP flow. This key signs the K1_C_ADAC store image.
Segment ID	Must exactly match the oem_segid value used in the MP flow.
Version	Must exactly match the oem_version value used in the MP flow.
Production flag	Set according to the target project’s MP and security configuration.

The interactive example later in this guide shows 0 for the production flag, Segment ID, and Version. Those values are examples only. The actual Segment ID and Version must match the MP flow oem_segid and oem_version values.

2.3 Token Tool Directory

Place the following files relative to adac_token_tool.py:

Token tool files

Path	Purpose
adac_challenge.bin	Challenge generated by ``sdc600_send_cmd02``command and will be generated in OpenOCD directory. Copy the latest challenge here before building a token.
bin/adac	ADAC signature generation executable.
bin/genx_img	Generates the K1_C_ADAC store image.
keys/K1_C_ADAC.EC521.priv.pem	Customer K1_C_ADAC private key used by the ADAC signing command.
keys/K1_C_ADAC.EC521.pub.pem	Matching customer K1_C_ADAC public key used as the genx_img payload.
keys/K0_OEM.priv.pem	The K0 OEM private key from the MP flow, used by genx_img to sign the store image.

On Linux, make the bundled executables executable if necessary:

chmod +x bin/adac bin/genx_img

The tool creates tmp for intermediate files and out for the final token. The directories are created automatically when required.

3 Start OpenOCD and Acquire a Challenge

1. Connect a J-Link probe to the board.

2. Open the designated SDC-600 OpenOCD directory and start OpenOCD with the package-provided Klamath_Jlink.bat that matches the connected probe.

3. Verify that OpenOCD is listening for telnet connections on port 4444.

4. Connect the terminal client to localhost:4444 by telnet_localhost_4444.bat. Adjust the executable path in telnet_localhost_4444.bat if Tera Term is installed in a non-default location.

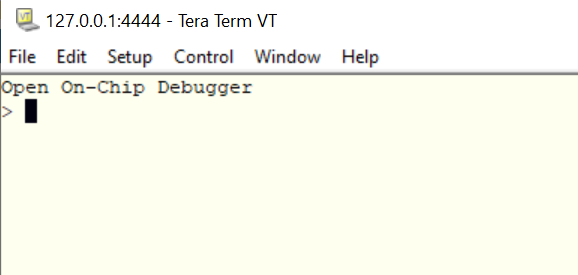

OpenOCD telnet prompt

1. Load the SDC-600 command script:

   source sdc600.tcl

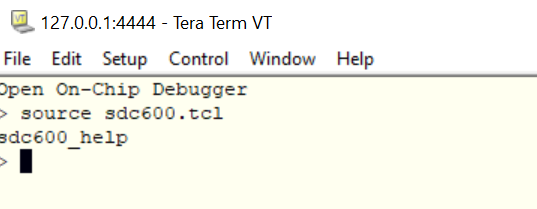

Load the SDC-600 Tcl commands

1. Start authentication and request a fresh challenge:

   sdc600_send_cmd02

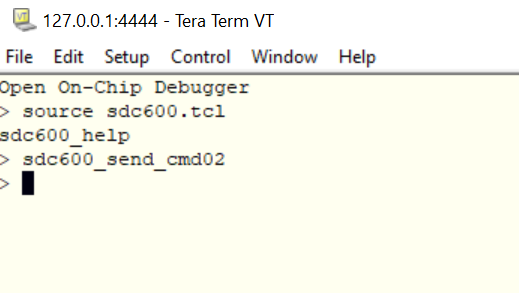

Send the authentication start command

A successful command writes the challenge file and reports Wrote 32 bytes (from 13th byte onward) to adac_challenge.bin.

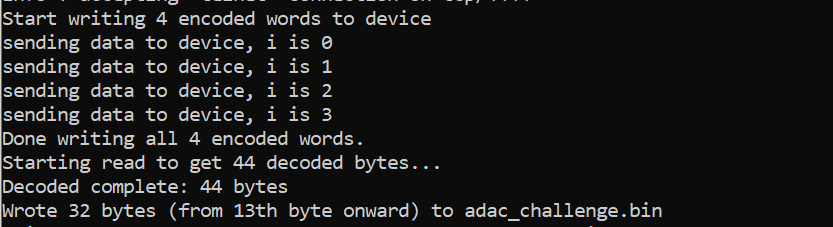

Successful challenge generation

Copy the newly generated adac_challenge.bin to the directory that contains adac_token_tool.py. Do not reuse an old challenge from a previous authentication session.

4 Generate the Permission Table and Debug Token

4.1 Interactive Operation

Run the tool from its root directory. Command-line parameters are not required:

python3 adac_token_tool.py

1. Select SL261x from the platform menu.

2. Select one or more permissions by entering their numbers or names. Entering an already selected item toggles it off. Use all to select every item, clear to clear the selection, and done to continue.

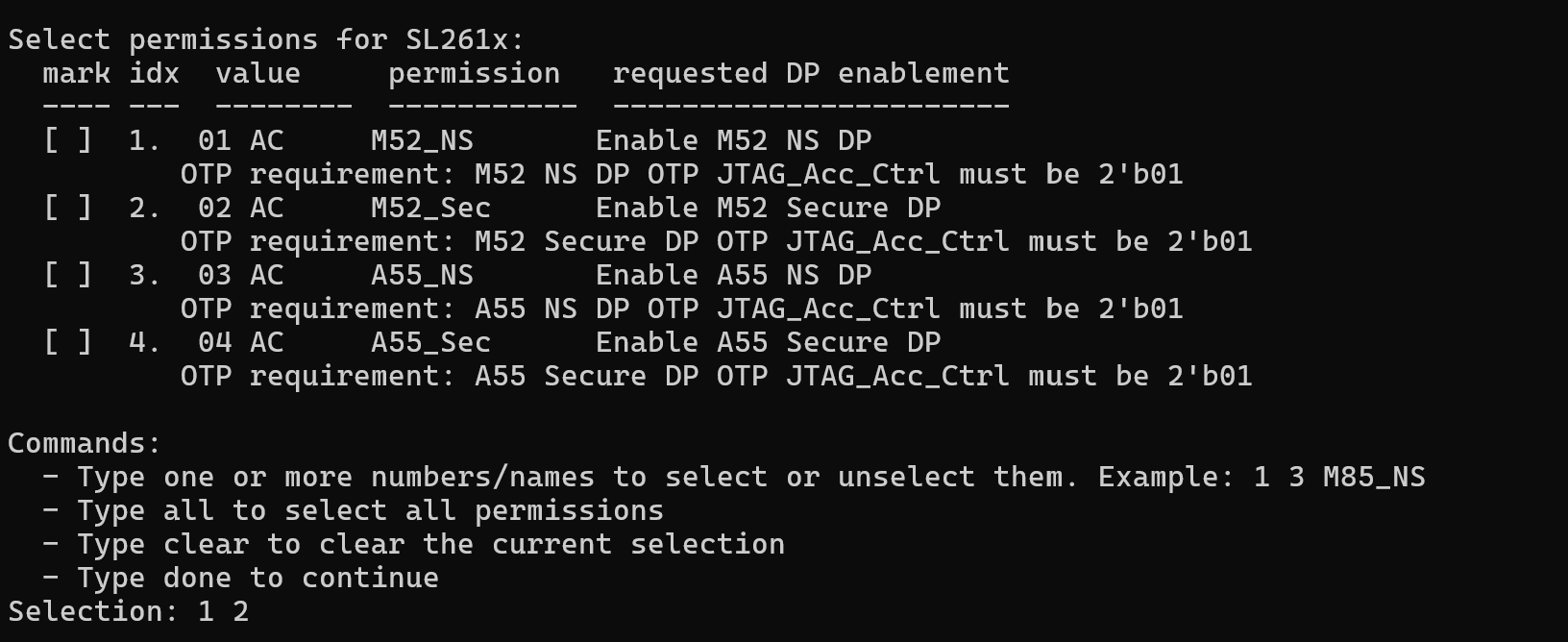

SL261x interactive permission selection

1. Review the selected ports and enter y to generate the permission table.

2. The tool automatically writes the 16-byte table to tmp/adac_permission.bin. No manual command or pre-generated permission file is required.

3. Enter y when prompted to build the debug token.

4. Enter the production flag requested by genx_img according to the target project’s MP and security configuration.

5. Enter Segment ID using the same value as oem_segid in the MP flow.

6. Enter Version using the same value as oem_version in the MP flow.

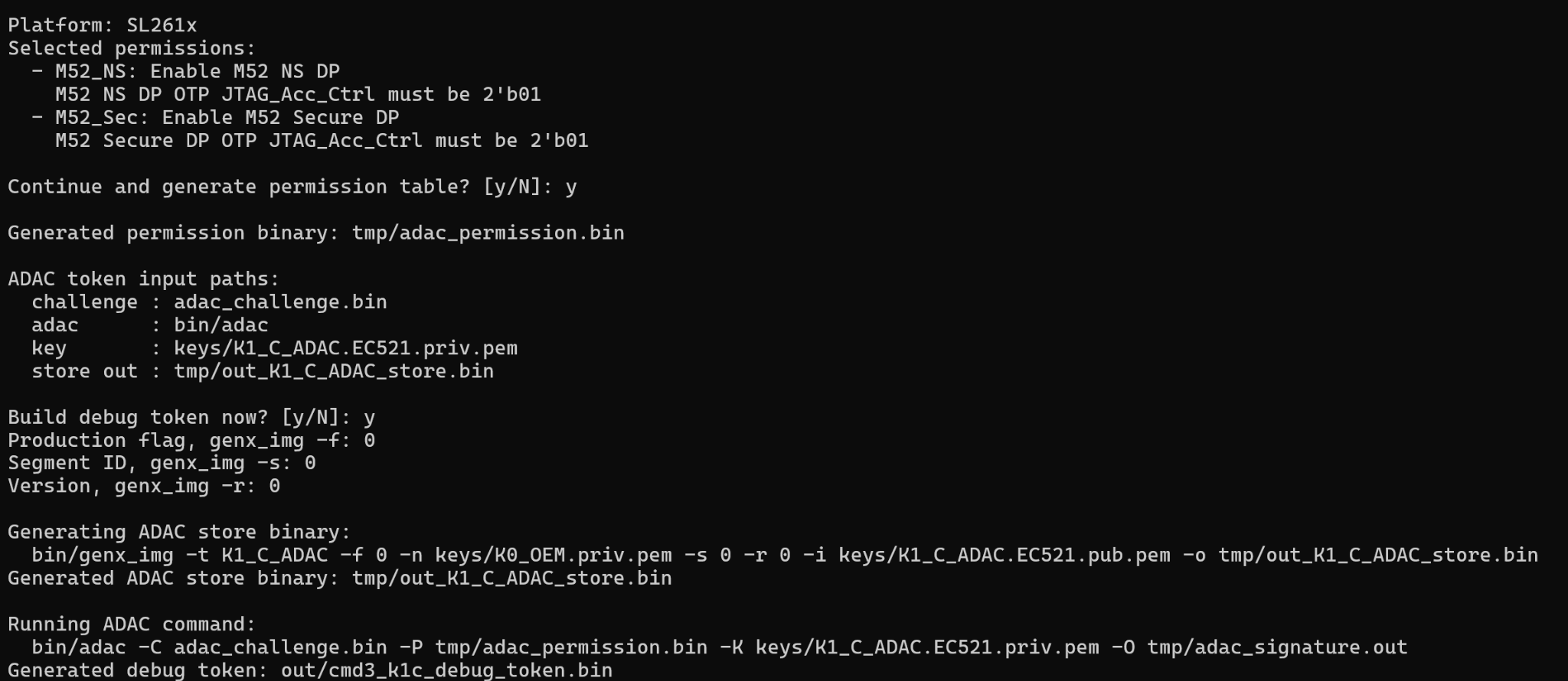

Permission generation, MP values, and debug token output

The genx_img command shown by the tool uses keys/K0_OEM.priv.pem to sign a store containing keys/K1_C_ADAC.EC521.pub.pem. The ADAC command then uses keys/K1_C_ADAC.EC521.priv.pem to create the token signature.

4.2 SL261x Permission Values

SL261x permission values

Byte Index	Value	Permission	Requested Debug Port
1:0	0xAC01	M52_NS	Enable M52 NS DP
3:2	0xAC02	M52_Sec	Enable M52 Secure DP
5:4	0xAC03	A55_NS	Enable A55 NS DP
7:6	0xAC04	A55_Sec	Enable A55 Secure DP
15:8	RFU	NA	Not applicable

Each selected DP must have its corresponding OTP JTAG_Acc_Ctrl value programmed to 2'b01. Unselected entries and RFU bytes remain zero in the 16-byte permission table. The 16-bit values are stored in little-endian order, as shown in the interactive menu.

4.3 Generated Files

Generated files

Output	Description
tmp/adac_permission.bin	Generated 16-byte permission table.
tmp/out_K1_C_ADAC_store.bin	K1_C_ADAC store. This file is regenerated every time a token is built.
tmp/adac_signature.out	ADAC signature output.
out/cmd3_k1c_debug_token.bin	Final token sent by sdc600_send_cmd03.

Every token build regenerates tmp/out_K1_C_ADAC_store.bin. Confirm the MP flow K0 key, oem_segid, and oem_version before using the generated token.

4.4 Optional Command-Line Operation

Generate only the permission table while keeping the interactive menus:

python3 adac_token_tool.py --permission-only

Example of a non-interactive SL261x token build:

python3 adac_token_tool.py \
  --platform SL261x \
  --permissions M52_NS M52_Sec \
  --build-token \
  --store-production-flag <production_flag> \
  --store-seg-id <oem_segid> \
  --store-version <oem_version> \
  --yes

Display all supported options with:

python3 adac_token_tool.py --help

5 Authenticate the Debug Session

1. Copy out/cmd3_k1c_debug_token.bin to the working directory used by the designated SDC-600 OpenOCD script.

2. In the same telnet session, send the authentication process command:

   sdc600_send_cmd03

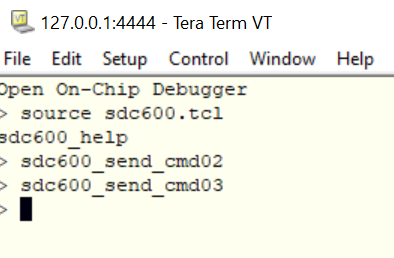

Send the authentication process command

A successful token verification reports SUCCESS: ADAC authentication success!.

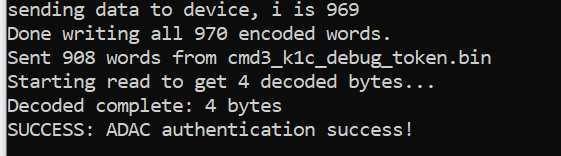

Successful ADAC authentication

6 Close the Debug Session

1. When debug access is no longer needed, close the authenticated session:

   sdc600_send_cmd04

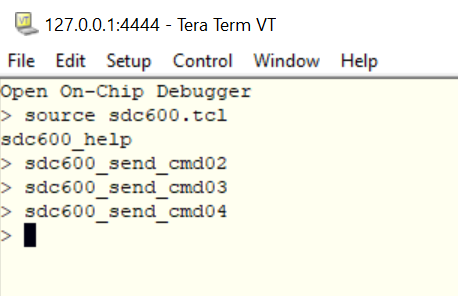

Send the close-session command

A successful close reports SUCCESS: ADAC close session success!.

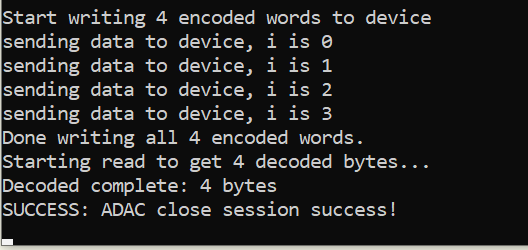

Successful ADAC session close

7 Command Sequence

Always perform the commands and token generation in this order:

source sdc600.tcl
sdc600_send_cmd02
python3 adac_token_tool.py
sdc600_send_cmd03
sdc600_send_cmd04

The token must be generated from the challenge produced by the current cmd02 session. Changing the order or reusing an old challenge can cause authentication to fail.

8 Troubleshooting

Troubleshooting

Symptom	Check
OpenOCD cannot connect	Confirm the probe connection and select the J-Link launcher supplied with the designated SL261x OpenOCD package.
cmd02 reports an invalid command	Run source sdc600.tcl first and verify that the designated OpenOCD package is being used.
adac_challenge.bin is missing	Run cmd02 successfully, then copy the generated file into the token tool root directory.
The token tool reports a missing file	Check the bin and keys paths in Section 2 and run chmod +x on the Linux executables.
genx_img or store validation fails	Use the K0 OEM private key from the MP flow and confirm Segment ID and Version match oem_segid and oem_version.
cmd03 verification fails	Use the fresh challenge, verify the matched K1_C_ADAC key pair, and confirm each requested DP has OTP JTAG_Acc_Ctrl programmed to 2'b01.
