Updating the ISP Sensor Configuration

SL1680 supports multiple camera sensors. By default, SL1680 is configured to use the OV5647 module with port CSI0. But, the software can be configured to use any of the supported sensor modules. Some configurations require setting a device tree overlay to function correctly.

Note

Starting with release v1.5, the default sensor is now the OV5647 module.

Supported Camera Modules

Sensor

Module

Resolution

Interface (Device Tree Overlay if Required)

Notes

IMX258

Synaptics IMX258 Camera Module

3840x2160 30fps (mode 0)

1920x1080 30fps (mode 1)

MIPI-CSI 0 w/ dolphin-csi0-with-expander.dtbo

Synaptics SL1680 MIPI CSI Adaptor Board Required

IMX415

Synaptics IMX415 Camera Module

3840x2160 30fps (mode 0)

1920x1080 30fps (mode 1)

MIPI-CSI 0 w/ dolphin-csi0-with-expander.dtbo

Synaptics SL1680 MIPI CSI Adaptor Board Required

OV5647

Arducam 5MP OV5647 Camera Module

640x480 60fps (mode 0)

1920x1080 30fps (mode 1)

MIPI-CSI0

1920x1080 30fps output is non-calibrated

MIPI-CSI 1 w/ dolphin-csi1-without-expander.dtbo

IMX477

Raspberry Pi High Quality Camera

3840x2160 30fps (mode 0)

MIPI-CSI0

Single Sensor Support Only

3840x2160 30fps output is non-calibrated

MIPI-CSI 1 w/ dolphin-csi1-without-expander.dtbo

Changing the Camera Sensor Module

The file /proc/vsi/isp_subdev0 is used to display the sensor configuration properties and to update the sensor configuration.

Current Sensor Configuration

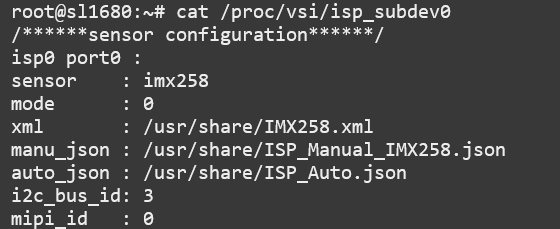

The current sensor configuration can be viewed by read from the /proc/vsi/isp_subdev0 file.

../_images/sl1680-isp-sensor-configuration.png

Reading the current sensor configuration

Configuring a New Module

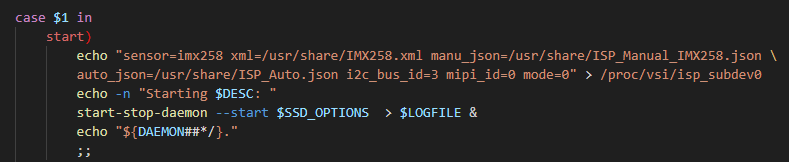

To change the sensor configuration, update the /usr/sbin/isp_media_server.sh script. Change the line which writes the sensor config to /proc/vsi/isp_subdev0. Update the sensor name, xml, and json files for the new sensor.

../_images/isp_media_server_script.png

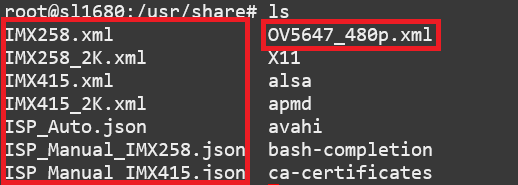

Each camera sensor module contains one or more XML configuration files located in /usr/share.

../_images/sl1680-isp-sensor-config-files.png

List of sensor config files

Then restart the isp_media_server service to apply the update.

systemctl restart isp_media_server

Note

To apply these changes to an image, modify the meta-synaptics/recipes-devtools/synasdk/files/isp_media_server.sh script as described below.

Changing Sensor Configurations

The default sensor configuration is for the OV5647 at 640x480 resolution. To use a different resolution or sensor modify the isp_media_server.sh script. This can be done at build time by applying a patch or by modifying the script on the board at runtime.

Configuration for OV5647 with 2K resolution:

diff --git a/recipes-devtools/synasdk/files/isp_media_server.sh b/recipes-devtools/synasdk/files/isp_media_server.sh
index 4f603fb..30b13cb 100644
--- a/recipes-devtools/synasdk/files/isp_media_server.sh
+++ b/recipes-devtools/synasdk/files/isp_media_server.sh
@@ -26,10 +26,10 @@ set -e

case $1 in
    start)
-        echo "sensor=ov5647 xml=/usr/share/OV5647_480p.xml manu_json=/usr/share/ISP_Manual_IMX258.json \
-        auto_json=/usr/share/ISP_Auto.json i2c_bus_id=3 mipi_id=0 mode=0" > /proc/vsi/isp_subdev0
+        echo "sensor=ov5647 xml=/usr/share/OV5647_2k.xml manu_json=/usr/share/ISP_Manual_OV5647_2k.json \
+        auto_json=/usr/share/ISP_Auto_OV5647_2k.json i2c_bus_id=3 mipi_id=0 mode=1 csi_clock_rate=300000000" > /proc/vsi/isp_subdev0
        echo "1 sensor=ov5647 1 xml=/usr/share/OV5647_480p.xml 1 manu_json=/usr/share/ISP_Manual_IMX258.json \
-        1 auto_json=/usr/share/ISP_Auto.json 1 i2c_bus_id=0 1 mipi_id=1 1 mode=0" > /proc/vsi/isp_subdev0
+        1 auto_json=/usr/share/ISP_Auto.json 1 i2c_bus_id=0 1 mipi_id=1 1 mode=1 csi_clock_rate=300000000" > /proc/vsi/isp_subdev0
        echo -n "Starting $DESC: "
        start-stop-daemon --start $SSD_OPTIONS  > $LOGFILE &
        echo "${DAEMON##*/}."

Configuration for IMX477:

diff --git a/recipes-devtools/synasdk/files/isp_media_server.sh b/recipes-devtools/synasdk/files/isp_media_server.sh
index 4f603fb..ff787a6 100644
--- a/recipes-devtools/synasdk/files/isp_media_server.sh
+++ b/recipes-devtools/synasdk/files/isp_media_server.sh
@@ -26,9 +26,9 @@ set -e

case $1 in
    start)
-        echo "sensor=ov5647 xml=/usr/share/OV5647_480p.xml manu_json=/usr/share/ISP_Manual_IMX258.json \
+        echo "sensor=imx477 xml=/usr/share/IMX477_3840x2160.xml manu_json=/usr/share/ISP_Manual_IMX477.json \
        auto_json=/usr/share/ISP_Auto.json i2c_bus_id=3 mipi_id=0 mode=0" > /proc/vsi/isp_subdev0
-        echo "1 sensor=ov5647 1 xml=/usr/share/OV5647_480p.xml 1 manu_json=/usr/share/ISP_Manual_IMX258.json \
+        echo "1 sensor=imx477 1 xml=/usr/share/IMX477_3840x2160.xml 1 manu_json=/usr/share/ISP_Manual_IMX477.json \
        1 auto_json=/usr/share/ISP_Auto.json 1 i2c_bus_id=0 1 mipi_id=1 1 mode=0" > /proc/vsi/isp_subdev0
        echo -n "Starting $DESC: "
        start-stop-daemon --start $SSD_OPTIONS  > $LOGFILE &

Configuration for IMX258:

diff --git a/recipes-devtools/synasdk/files/isp_media_server.sh b/recipes-devtools/synasdk/files/isp_media_server.sh
index 4f603fb..c5cd9b1 100644
--- a/recipes-devtools/synasdk/files/isp_media_server.sh
+++ b/recipes-devtools/synasdk/files/isp_media_server.sh
@@ -26,7 +26,7 @@ set -e

case $1 in
    start)
-        echo "sensor=ov5647 xml=/usr/share/OV5647_480p.xml manu_json=/usr/share/ISP_Manual_IMX258.json \
+        echo "sensor=imx258 xml=/usr/share/IMX258.xml manu_json=/usr/share/ISP_Manual_IMX258.json \
        auto_json=/usr/share/ISP_Auto.json i2c_bus_id=3 mipi_id=0 mode=0" > /proc/vsi/isp_subdev0
        echo "1 sensor=ov5647 1 xml=/usr/share/OV5647_480p.xml 1 manu_json=/usr/share/ISP_Manual_IMX258.json \
        1 auto_json=/usr/share/ISP_Auto.json 1 i2c_bus_id=0 1 mipi_id=1 1 mode=0" > /proc/vsi/isp_subdev0

Configuration for IMX415:

diff --git a/recipes-devtools/synasdk/files/isp_media_server.sh b/recipes-devtools/synasdk/files/isp_media_server.sh
index 4f603fb..c5cd9b1 100644
--- a/recipes-devtools/synasdk/files/isp_media_server.sh
+++ b/recipes-devtools/synasdk/files/isp_media_server.sh
@@ -26,7 +26,7 @@ set -e

case $1 in
    start)
-        echo "sensor=ov5647 xml=/usr/share/OV5647_480p.xml manu_json=/usr/share/ISP_Manual_IMX258.json \
+        echo "sensor=imx415 xml=/usr/share/IMX415.xml manu_json=/usr/share/ISP_Manual_IMX415.json \
        auto_json=/usr/share/ISP_Auto.json i2c_bus_id=3 mipi_id=0 mode=0" > /proc/vsi/isp_subdev0
        echo "1 sensor=ov5647 1 xml=/usr/share/OV5647_480p.xml 1 manu_json=/usr/share/ISP_Manual_IMX258.json \
        1 auto_json=/usr/share/ISP_Auto.json 1 i2c_bus_id=0 1 mipi_id=1 1 mode=0" > /proc/vsi/isp_subdev0

Updating Device Tree Overlay

See Devicetree Overlays for details on how to enable the devicetree overlays.

Using the OV5647 and IMX477 Sensors

Astra Machina SL1680 supports using the OV5647 and IMX477 sensors on either the CSI0 (22-pin), or the CSI1 (15-pin) connector, or both simultaneously (OV5647 only). Connecting a single sensor to CSI0 is the default configuration. Connecting a single sensor to CSI1 requires enabling the dolphin-csi1-without-expander.dtbo overlay. overlay.

Note

Release v1.4 adds support for using an OV5647 sensor on CSI1. Previous versions only support using OV5647 on CSI0.

Note

Dual sensor support has not been implemented yet for Scarthgap v2.0 Alpha.

Note

Release v1.7 adds support for a single IMX447 sensors on either CSI0 or CSI1.

Enabling the IMX258 and IMX415 Sensors

Astra Machina SL1680 supports the IMX258 and IMX415 sensors connected to CSI0. These sensors use a GPIO expander which requires the dolphin-csi0-with-expander.dtbo overlay.

Note

Using the IMX258 and IMX415 on CSI1 is not supported on Synaptics Astra Machina boards since CSI1 is not compatible with the GPIO expander.

ISP Video Test Tool

Release v1.7.0 adds the isp_video_test tool which allows testing the ISP and setting advanced settings. For example, is supports dumping raw MCM buffers. This feature is not supported by Gstreamer’s filesink since it uses IOMMU memory.

Execute the following command to start the video test application:

isp_video_test

Usage

isp_video_test  -w 1920 -h 1080 -f NV12 -m 0 -t 3 -u 0 -d 4 -r 0 -p /path_to_store_file
Options

  • -w Image width

  • -h Image height

  • -f Image format NV12, NM12, RAW, RGB24, BGR24, YUV3

  • -m Sensor mode index

  • -t Display type:

    • 0: DRM-KMS

    • 2: File

    • 3: Wayland

  • -d Video device ID

  • -u IOMMU:

    • 1: Enable

    • 0: Disable

  • -r Sensor Direct Output:

    • 1: Enable

    • 0: Disable

  • -p

    Path to store the output file. If not specified, PWD will be used.

Supported Video types

Display Type

NV12

RGB

Bayer

File

IOMMU

non-IOMMU

IOMMU

non-IOMMU

IOMMU

non-IOMMU

-f NM12 -t 2 -u 1

-f NV12 -t 2 -u 0

Not Supported

-f BGR24 -t 2 -u 0

-f RGB24 -t 2 -u 0

-f RAW-t 2 -u 1

-f RAW-t 2 -u 0

DRM-KMS

-f NM12 -t 0 -u 1

-f NV12 -t 0 -u 0

Not Supported

-f BGR24 -t 0 -u 0

-f RGB24 -t 0 -u 0

Not Supported

Not Supported

Wayland

-f NM12 -t 3 -u 1

-f NV12 -t 3 -u 0

Not Supported

Not Supported

Not Supported

Not Supported

Output to File

NV12

NV12 with IOMMU enabled.

isp_video_test -w 1920 -h 1080 -f NV12 -m 0 -t 2 -u 1 -d 3

Output File: Video_NV12M_1920_1080.yuv

NV12 with IOMMU disabled.

isp_video_test -w 1920 -h 1080 -f NV12 -m 0 -t 2 -u 0 -d 3

Output File: Video_NV12M_1920_1080.yuv

RGB

RGB with IOMMU disabled (IOMMU is not supported for RGB).

BGR24::

isp_video_test -w 1920 -h 1080 -f BGR24 -m 0 -t 2 -u 0 -d 4

Output File: Video_BGR24_1920_1080.bgr

RGB24::

isp_video_test -w 1920 -h 1080 -f RGB24 -m 0 -t 2 -u 0 -d 4

Output File: Video_RGB24_1920_1080.rgb

RAW

Currently, there is no IOMMU support for ISP’s RAW/Bayer output. Below Example 1 and 2 show the commands for dumping ISP’s RAW output.

isp_video_test -w 1920 -h 1080 -f RAW -m 0 -t 2 -u 0 -d 4

Example-1, write to /tmp:

isp_video_test -w 1920 -h 1080 -f RAW -m 0 -t 2 -u 0 -d 4 -p /tmp

Example-2. write to a USB drive mounted at /media/usb1:

isp_video_test -w 1920 -h 1080 -f RAW -m 0 -t 2 -u 0 -d 4 -p /media/usb1
YUV3 (Sensor Direct Output)

YUV3 with IOMMU enabled:

isp_video_test -w 1920 -h 1080 -f YUV3 -m 0 -t 2 -u 1 -r 1 -d 3

Output File: Video_YUV3_1920_1080.yuv

YUV3 with IOMMU disabled:

isp_video_test -w 1920 -h 1080 -f YUV3 -m 0 -t 2 -u 0 -r 1 -d 3

Output File: Video_YUV3_1920_1080.yuv

Output to DRM-KMS Display

To use DRM-KMS display, first stop Weston::

systemctl stop weston
NV12

NV12 with IOMMU enabled.

isp_video_test -w 1920 -h 1080 -f NM12 -m 0 -t 0 -u 1 -d 3

Expected Output: 1920x1080 video played on HDMI display.

NV12 with IOMMU disabled.

isp_video_test -w 1920 -h 1080 -f NV12 -m 0 -t 0 -u 0 -d 3

Expected Output: 1920x1080 video played on HDMI display.

RGB

RGB with IOMMU disabled (IOMMU is not supported for RGB).

BGR24::

isp_video_test -w 1920 -h 1080 -f BGR24 -m 0 -t 0 -u 0 -d 4

RGB24::

isp_video_test -w 1920 -h 1080 -f RGB24 -m 0 -t 0 -u 0 -d 4

Output to Wayland Display

NV12 with IOMMU enabled.

isp_video_test -w 1920 -h 1080 -f NM12 -m 0 -t 3 -u 1 -d 3

Expected Output: 1920x1080 video played on HDMI display.

NV12 with IOMMU disabled.

isp_video_test -w 1920 -h 1080 -f NV12 -m 0 -t 3 -u 0 -d 3

Expected Output: 1920x1080 video played on HDMI display.

Bayer RGB Support

An additional video device is created to support Bayer RGB capture. This is done as 4th video instance which advertise only Bayer RGB support. The other 3 video ports support NV12/RGB only.

Bayer Formats Supported by Sensor:

Sl

Sensor Name

Bayer Format

Bits

1

IMX258

RGGB

10

2

IMX415

GBRG

12/10

3

OV5647

GRBG

10

4

IMX477

RGGB

10

Below is the example to find the fourth video (0 to 3):

root@sl1680:~# v4l2-ctl -d 7  --info
Driver Info:
        Driver name      : vvcam-video.0.3
        Card type        : vvcam-video.0.3
        Bus info         : platform:vvcam-video.0.3
        Driver version   : 5.15.140
        Capabilities     : 0x84201000
                Video Capture Multiplanar
                Streaming
                Extended Pix Format
                Device Capabilities
        Device Caps      : 0x04201000
                Video Capture Multiplanar
                Streaming
                Extended Pix Format
Media Driver Info:
        Driver name      : vvcam-video
        Model            : verisilicon_media
        Serial           :
        Bus info         :
        Media version    : 5.15.140
        Hardware revision: 0x00000000 (0)
        Driver version   : 5.15.140
Interface Info:
        ID               : 0x0300000f
        Type             : V4L Video
Entity Info:
        ID               : 0x0000000d (13)
        Name             : vvcam-video.0.3
        Function         : V4L2 I/O
        Pad 0x0100000e   : 0: Sink
        Link 0x02000044: from remote pad 0x1000026 of entity 'vvcam-isp-subdev.0' (V4L2 I/O): Data, Enabled

To confirm it supports only Bayer RGB below command will help:

root@sl1680:~# v4l2-ctl -d /dev/video7 --list-formats
ioctl: VIDIOC_ENUM_FMT
        Type: Video Capture Multiplanar

        [0]: 'BA10' (10-bit Bayer GRGR/BGBG)
        [1]: 'GB10' (10-bit Bayer GBGB/RGRG)
        [2]: 'BG10' (10-bit Bayer BGBG/GRGR)
        [3]: 'BA10' (10-bit Bayer GRGR/BGBG)
        [4]: 'RG12' (12-bit Bayer RGRG/GBGB)
        [5]: 'GB12' (12-bit Bayer GBGB/RGRG)
        [6]: 'BG12' (12-bit Bayer BGBG/GRGR)
        [7]: 'BA12' (12-bit Bayer GRGR/BGBG)

Note

Ensure to use RAW path (vvcam-video.0.3) for the test.
