Rescue Mode User Guide

Introduction

Rescue Mode is a minimal initramfs, standalone Linux environment designed to help recover a device when the main operating system becomes unbootable or corrupted. It typically resides in a separate partition, runs on RAM and operates independently of the primary root filesystem.

In embedded systems, especially those deployed in remote or inaccessible locations, physical access for recovery (via USB or SD card) is often impractical. Rescue Mode addresses this challenge by providing a reliable fallback mechanism. It enables the device to boot into a lightweight recovery system—usually based on initramfs—that can perform critical recovery operations over available interfaces like Ethernet.

Note

Rescue mode is supported only on single-copy partition layout.

Enabling Rescue Mode in the Yocto

  • Set ENABLE_RESCUE_MODE = "1" in the local.conf located in the build-<machine>/conf/ directory. (By default, this value is set to “0”).

  • Now, build the image using the following BitBake command (This is the same procedure used to build the standard Astra SDK)

bitbake astra-media

  • After the build completes, the SDK will include rescue images (SYNAIMG) in a single-copy format.

  • Also, the sl1640_single_copy.swu file and its certificate will be generated in the RESCUE_OTA directory in deploy directory: build-sl1640/tmp/deploy/images/sl1640/RESCUE_OTA/

  • Flash the SDK onto the device using the same procedure as for the normal SDK.

Booting to Rescue Mode

Initial flashing and boot

  • During the first boot, the rescue images will be automatically copied to the rescue partition: /dev/mmcblk0p2.

  • To verify that the rescue partition exists, run the command: lsblk

  • Execute saveenv in the u-boot console. This step is required because SWUpdate depends on saved environment variables.

Note

Ensure the device is connected to Ethernet before booting to rescue mode. This allows it to:

  • Automatically obtain an IP address via udhcpc.

  • Synchronize date and time via chrony.

If Ethernet is not connected during booting to rescue mode, you can manually assign an IP address after booting to rescue mode using:

udhcpc -i eth0

Booting into Rescue Mode

  • To initiate rescue mode:

    1. Short PIN 31 and PIN 32 on the 40-pin header of the Astra board.

    2. Press the Reset button.

    3. Alternatively, we can boot the rescue mode by executing the command run rescue_boot in uboot console without above step 1 and 2.

  • This triggers a reboot into rescue mode by loading the initramfs image located on /dev/mmcblk0p2.

To verify that the device has booted into the Rescue image, the following logs will appear in the serial console at the end of the boot sequence:

[rescue] Bringing up eth0...
[    3.488566] stmmaceth f7b60000.ethernet eth0: PHY [stmmac-0:00] driver [SP Fast Ethernet] (irq=59)
[    3.499667] stmmaceth f7b60000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[    3.517606] dwmac1000: Master AXI performs any burst length
[    3.523197] stmmaceth f7b60000.ethernet eth0: No Safety Features support found
[    3.530425] stmmaceth f7b60000.ethernet eth0: No MAC Management Counters available
[    3.537993] stmmaceth f7b60000.ethernet eth0: PTP not supported by HW
[    3.544940] stmmaceth f7b60000.ethernet eth0: configuring for phy/mii link mode
[rescue] Starting DHCP...
[    5.416818] stmmaceth f7b60000.ethernet eth0: Link is Up - 100Mbps/Full - flow control off
[    5.425121] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
INIT: Entering runlevel: 5
[   22.119243] random: crng init done
Starting OpenBSD Secure Shell server: sshd
generating ssh RSA host key...
generating ssh ECDSA host key...
generating ssh ED25519 host key...
done.
Starting chronyd: done
Poky (Yocto Project Reference Distro) 4.0.17 sl1640 ttyS0
sl1640 login: root
root@sl1640:~

Note

Disconnect the short between PIN 31 and PIN 32 to boot into the normal SDK.

Running the SWUpdate in Rescue Mode

Note

Execute saveenv in the u-boot console before booting the rescue mode. This step is required because SWUpdate depends on saved environment variables.

Using the Root File System

To start the SWUpdate, execute the following command:

update -i <filename> -k <key/cert>

Note

Place the single copy sl1640_single_copy.swu package and its corresponding cert/key in the local space (/home/root/).

For example: If the sl1640_single_copy.swu file and mycert.cert.pem are placed on /home/root on the device, run the command:

update -i sl1640_single_copy.swu -k mycert.cert.pem

Make sure PIN 31 and PIN 32 are disconnected (not shorted) to allow the device to boot into the normal recovered SDK

Using the Mongoose Webserver

To start the embedded web server, document-root (-r) and port (-p) are the mandatory parameters. Execute the following command:

update -w "-r /www -p 8080" -k <key/cert>

Note

The www web folder will be located on the root directory of the device by default. The corresponding key/cert should be stored in the device’s local space.

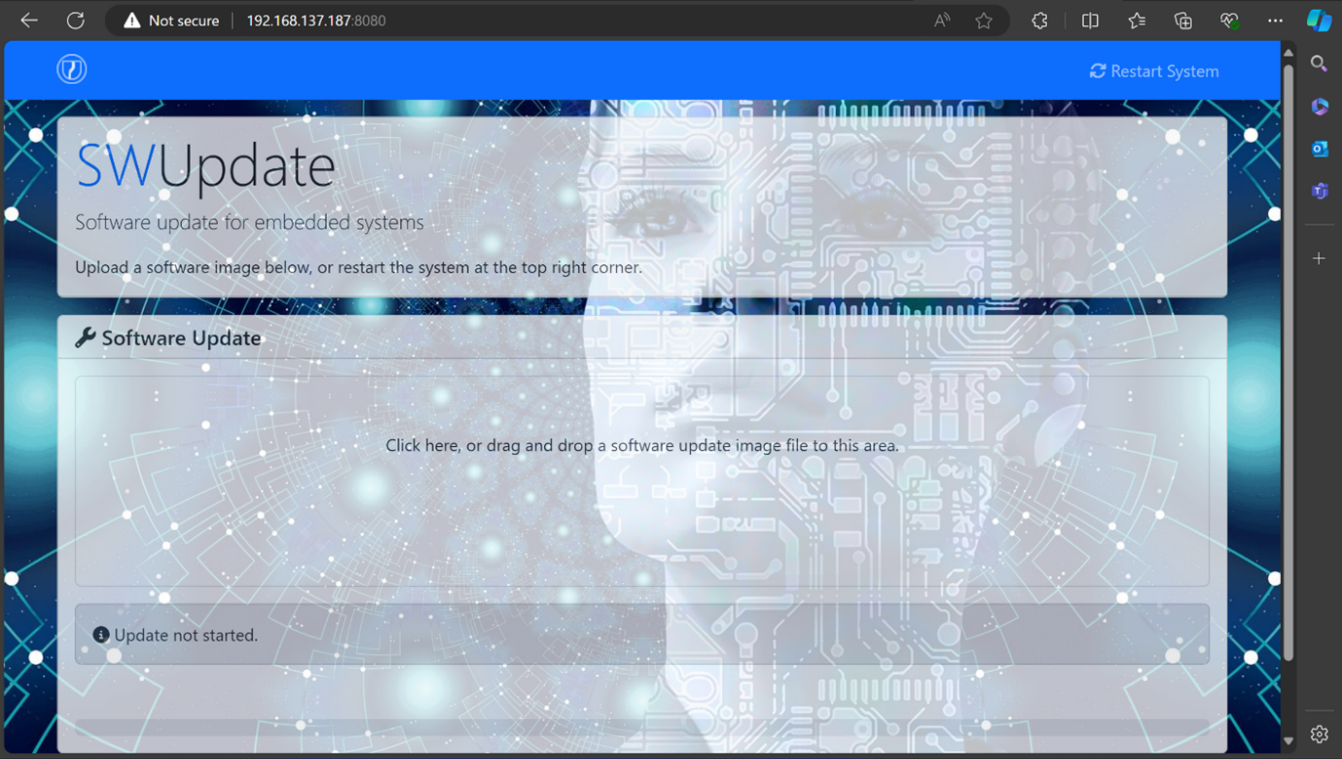

The default port for the web server is 8080. To access it, open any web browser and navigate to the following URL: <device_ip>:8080. The following image displays the user interface of the hosted web server.

../_images/mongoose_web_server_rescue_mode.png

Mongoose web server hosted on port 8080 of the device’s IP address

Click the file upload box (click here) on the hosted web page, which will open a dialog box allowing you to select the sl1640_single_copy.swu image from your system.

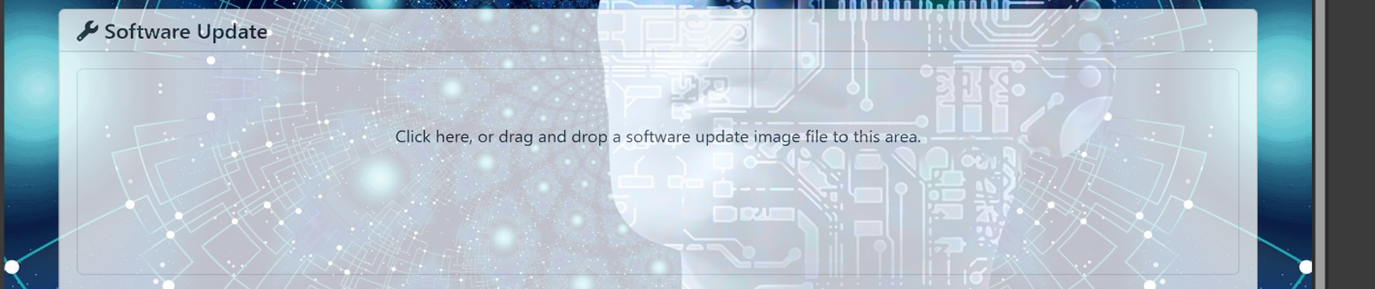

The following image shows the file upload box on the hosted web page:

../_images/mongoose_upload_box_rescue_mode.png

File upload box in Mongoose webserver
